NETUM RF5200U Wearable Hybrid Wireless Bluetooth 1D/2D QR Code Scanner with UHF RFID Reader

Product Description

The RF5520U is NETUM’s latest innovation—a hybrid ring-style and handheld portable scanner that supports both barcode and UHF RFID scanning.
Durable Construction : Built with a rugged combination of soft TPR and tough ABS materials, the scanner is highly resistant to wear and impact. Perfect for demanding environments like warehouses and logistics centers, it’s built to last and perform reliably over time.
Compact & Portable : Lightweight and easy to wear or hold, this scanner is ideal for mobile operations. Whether worn on the finger or used handheld, it offers all-day comfort with no extra burden.
Industrial Design : Featuring bold lines and a matte finish, its industrial-grade design not only looks professional but also enhances grip and comfort through ergonomic detailing.

Product Features

Dual Scanning Modes for Any Task : Seamlessly switch between ring-style and handheld operation to adapt to different workflows and improve scanning efficiency.
All-in-One Data Capture : Supports fast scanning of 1D/2D barcodes and UHF RFID tags. Ideal for various industries such as logistics tracking (barcodes) and asset inventory (RFID), cutting down on the need for multiple devices.
Integrated Scanning Strategy : Combines RFID (bulk scanning) with barcodes (item-level precision) for complete data visibility—from macro asset overviews to micro-level detail.
Swappable Battery Design : The removable battery allows for quick replacement, keeping your operations running continuously with minimal downtime—ideal for high-demand work environments.

Barcode module parameters

1	Optical performance
1.1	Sensor resolution:	1280 x 960 pixels, rolling shutter
1.2	Aiming LED:	Green LED
1.3	Illumination:	Warm white LED light
1.4	LED classification	According to IEC/EN 62471, it is a risk-exempt group LED
2	Scanning performance
2.1	Field of view: Horizontal:	Horizontal: 44.5°, Vertical: 33.5°
2.2	Offset, tilt and rotation:	Left and right swing tolerance: ±60° Forward and backward swing tolerance: ±60° Rotation tolerance: 360°
2.3	Focal length:	From the front of the engine: 6 inches / 15.24 cm
2.3	Decoding capabilities:	2D PDF417、MicroPDF417、Code 128 Emulation、QR Code、MicroQR、Data Matrix 、Maxicode、Aztec 1D Code128（UCC/EAN-128、 GS1-128、ISBT 128）、UPC/EAN(UPC-A、UPC-E、EAN-8/JAN-8、EAN-13/JAN-13、ISBN、ISSB EAN)、Code39、Code32、Code93、Code11、Interleaved 2 of 5（ITF）、Discrete 2 of 5（DTF）、Codabar（NW-7）MSI、Chinese 2 of 5、Matrix 2 of 5、Korean 3 of 5、Inverse 1D、Postal Codes、GS1 DataBar、Composite
2.4	Accuracy:	1D:≥3 mil 2D:≥5 mil
2.5	Scanning Performance:	5 mil Code 39 2.4 in/6.1 cm to 9.5 in/24.1 cm 5 mil Code 128 2.8 in/7.1 cm to 9.0 in/22.9 cm 6.67 mil PDF 417 2.4 in/6.1 cm to 8.0 in/20.3 cm 10 mil DataMatrix 2.9 in/7.4 cm to 8.5 in/21.6 cm 100% UPCA 1.8 in/4.6 cm to 19.5 in/49.5 cm 15 mil QR 1.2 in/3.0 cm to 11.5 in/29.2 cm 20 mil QR 1.2 in/3.0 cm to 14.0 in/35.6 cm
3	RFID performance
3.1	Carrier frequency:	840MHz ~960MHz
3.2	Antenna:	2dBi PCB antenna
3.3	Maximum RFID read range:	≈0~20CM

RFID Specifications

Frequency Range:** Operates between 860 MHz and 960 MHz

Supported Tag Protocol:** ISO/IEC 18000-6C (EPC Class 1 Gen 2)

Supported Data Output:** EPC, TID, and user-defined data

Common Applications:

Logistics & Supply Chain:** Fast tag reading for quicker goods handling and improved operational efficiency

Retail:** Inventory tracking and automated checkout systems

Smart Transportation:** Vehicle identification and electronic toll collection

Asset Tracking:** Real-time monitoring and management of equipment and asset movement

Healthcare:** Patient and medication tracking to enhance safety and traceability

Industrial Automation:** Live monitoring of production lines and equipment status

Animal Identification:** Livestock tracking, farm management, and vaccination recordkeeping

Product Specifications

1	Wireless Parameters
3.1	Transmission Mode:	Wireless Bluetooth 4.2 (Supports Bluetooth HID SPP BLE)
3.2	Communication Distance:	Open Visible Distance ≦ 30 meters
3.3	Battery Capacity:	1000Mah
3.4	Battery Life:	≈5 hours (continuous operation)
3.5	Use Times:	≈18,000 times (scan once per second)
3.7	Prompt Mode:	Buzzer, LED Indicator, Vibration
3.8	Scan Mode:	Wearable Ring Button Trigger Scan
3.8	Scan Mode:	Portable Handheld Button Trigger Scan
4	Electrical Characteristics
4.1	Operating Voltage:	5 VDC±5%
4.2	Current @3.3VDC	Operating Current: 310mA Standby Current: ≤0.6μA
5	Physical Dimensions
5.1	Dimensions Length x Width x Height (mm): Ring:	725055mm Handheld: 725032mm
5.2	Cable:	Type-C interface, cable length: 1.2m
5.3	Color:	Gray + Black
5.4	Material:	ABS+TPR+PC
5.5	Weight:	Ring type ≈72g Handheld ≈68g
6	Operating environment
6.1	Operating temperature:	-4° F to 122° F / -20° C to 50° C
6.2	Storage temperature:	-22° F to 158° F/-30° C to 70° C
6.3	Storage humidity:	5%-90%
6.4	Ambient lighting:	Up to 107,639 lux (under direct sunlight)

Price

Collections

Custom Barcode Scanner

DS2800 Wireless 2D Handheld Barcode Scanner

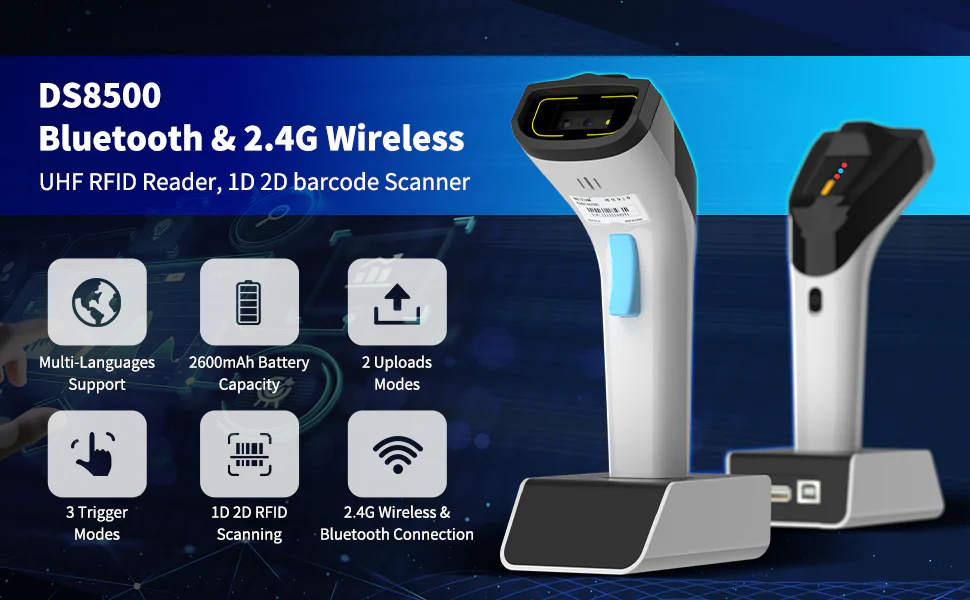

DS8500 Wireless 2D RFID Barcode Scanner
